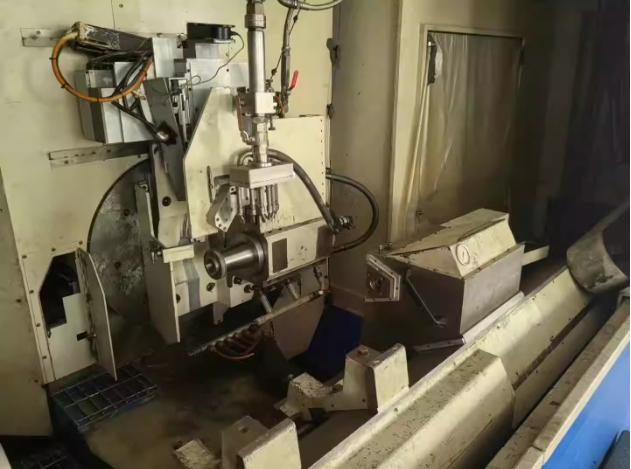

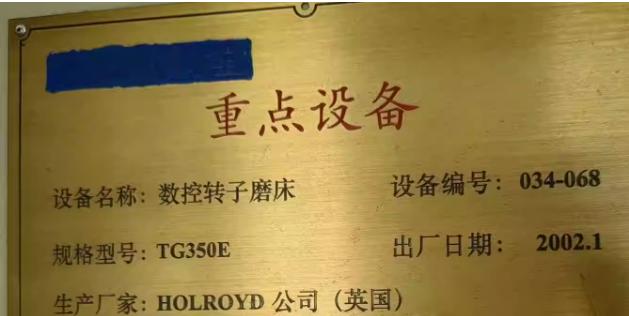

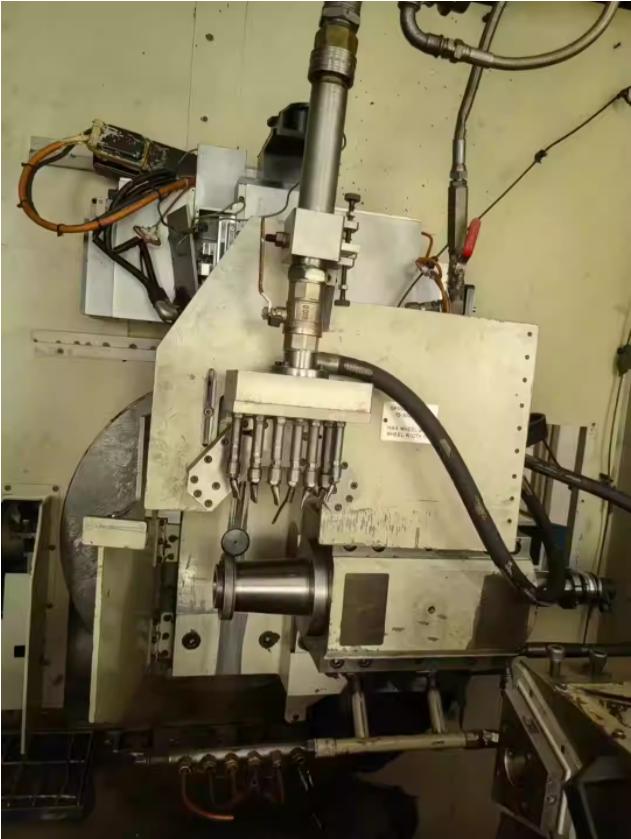

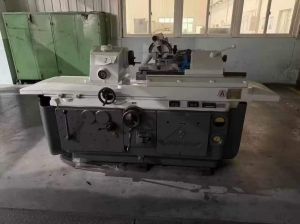

| 霍洛伊德 - TG350E - 磨床 |
| [产品基本信息] |

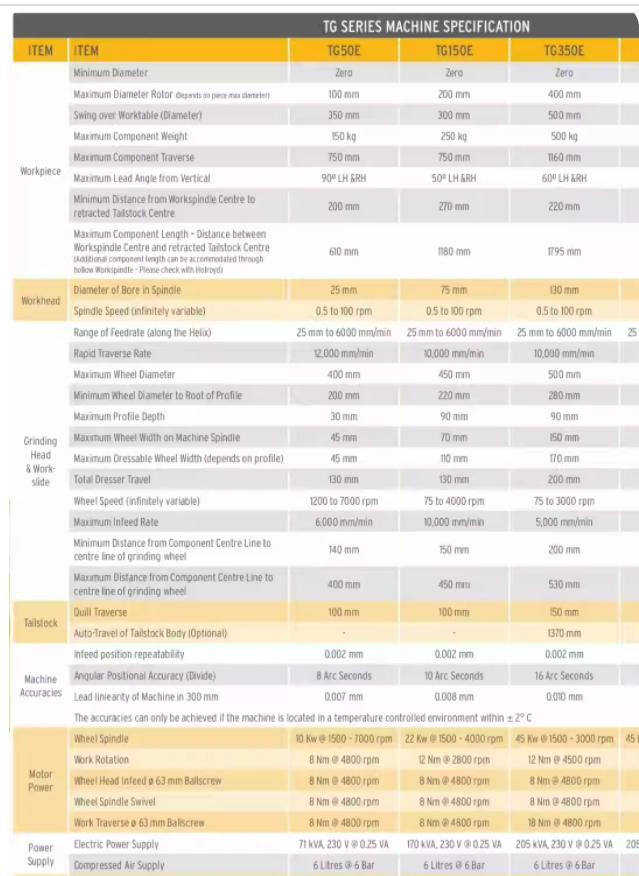

| 库存号：50467 品牌：霍洛伊德 型号：TG350E 产地：英国 所在地：东莞 年份： 描述: Maximum diameter rotor: 400mm Swing over worktable: 500mm Maximum component weight: 500kg Maximum component traverse: 1160mm Maximum lead angle from vertical: 60° LH&RH Maximum distance from spindle center to retracted tailstock center: 220mm Diameter of bore in spindle: 130mm Spindle speed: 0.5-100rpm Range of freedrate: 25-6000mm/min Rapid traverse rate: 10000mm/min Maximum wheel diameter: 500mm Minimum wheel diameter to root of profile: 280mm Total dresser travel: 200mm Wheel speed: 75-3000rpm Maximum infeed rate: 5000mm/min Minimum distance from component center line to center line of grinding wheel: 200mm Maximum distance from component center line to center line of grinding wheel: 530mm Infeed position repeatability: 0.002mm Angular positional accuracy: 16 Arc second Machine dimension: 6775*5000*3300mm |
