Std. chuck diameter: 254mm

Swing over bed: 750mm

Swing over carriage / cross slide: 480mm

Max. turning diameter: 410mm

Max. turning length: 1260mm

C-axis indexing: 0.001 DEG

Spindle nose: A2-8

Spindle speeds: 3000 RPM

Spindle power: 22.0 / 18.5 KW

X-axis rapid traverse rates: 20m/min

Y-axis rapid traverse rates: 24m/min

Tool magazine: 12

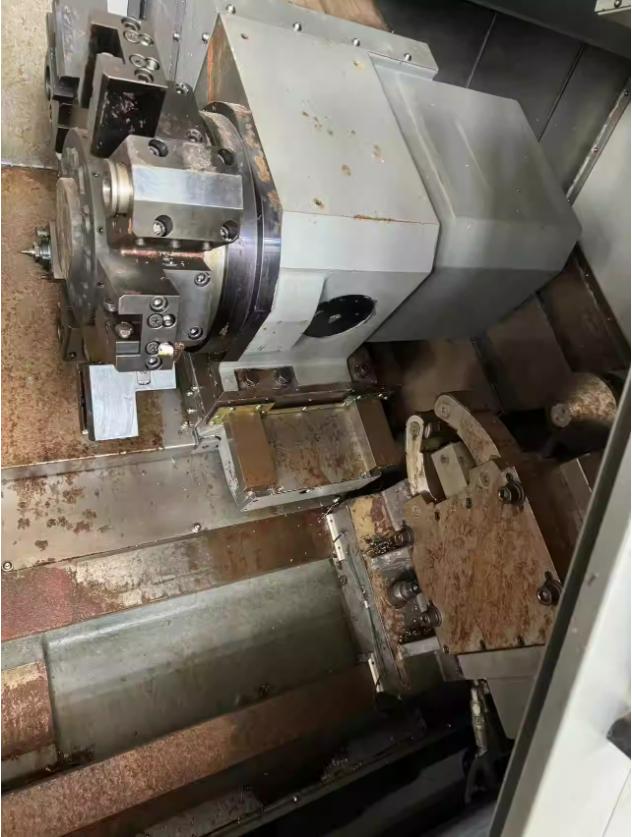

Driven tool speeds: 4000 RPM

Driven tool motor: 5.5 / 3.7 KW
