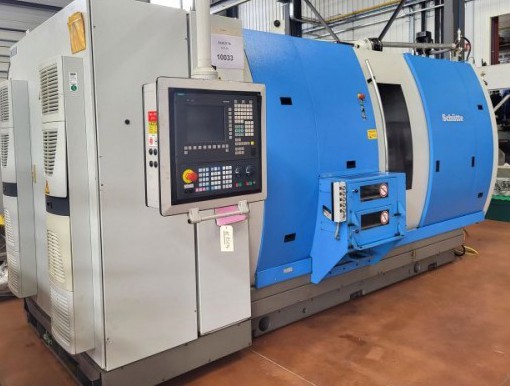

SCHÜTTE - SC9-26

商品名称:数控多轴车床

库存号:10014

所在地:国外

所在地：

年份：

介绍:

Number of spindles: 9

- Bar capacity: 26 [mm]

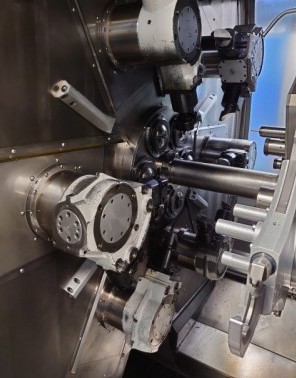

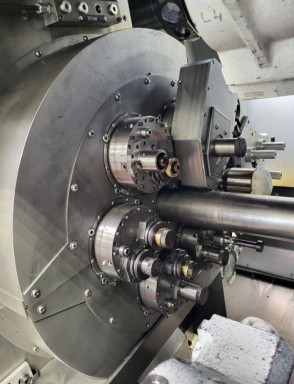

MAIN SPINDLES 1 TO 6

- Nominal torque: 18.5 [Nm]

- Max. spindle speed: 7000 [rpm]

- Stroke X: 70 [mm]

- Stroke Z: 125 [mm]

MAIN SPINDLES 8 AND 9

- Nominal torque: 15 [Nm]

- Max. spindle speed: 10000 [rpm] X-stroke: 110 [mm

- Stroke X: 110 [mm]

- Travel Z: 125 [mm]

COUNTER SPINDLE 7

- Nominal torque: 15 [Nm]

- Max. spindle speed: 10000 [rpm] X-stroke: 110 [mm

- Stroke Z: 300 [mm]

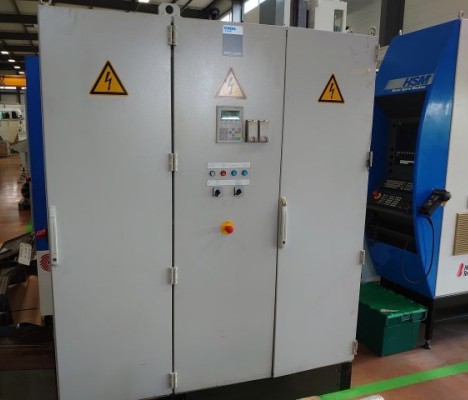

POWER SUPPLY

- Supply voltage: 400 [V]

- Installed power: 109 [A]

DIMENSIONS

- Floor dimensions: 9.100 x 1.805 [mm]

- Machine height: 2,800 [mm]

- Machine weight : 18.500 [kg]

MACHINE HOURS

- operating hours : 82000 [h]

Equipment

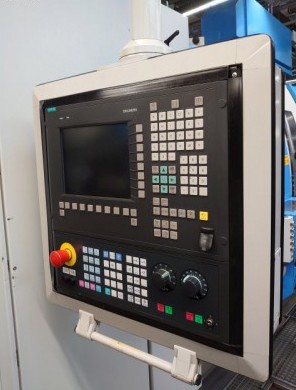

- CNC Siemens Sinumerik 840D

- Chips conveyor

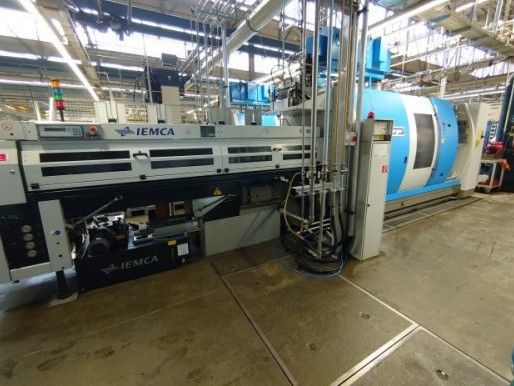

- Bar loader : SIR 36/33 F

- Coolant tank: KNOLL VRF 450/2600

* with high pressure pump

* with paper filtration

* capacity: 2600 [l]
